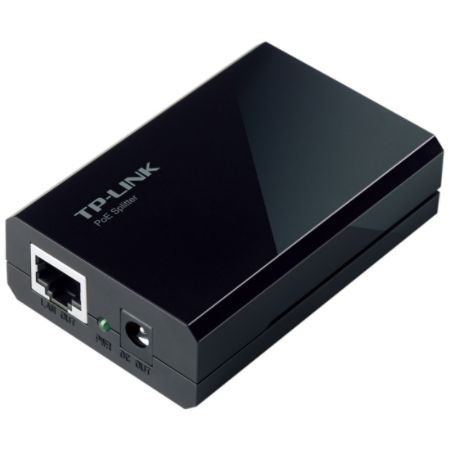

TP-LINK PoE Splitter Item # 160618

 |
TP-LINK PoE Splitter
$ 15 .29 / each $15.29
In Stock
Estimated delivery 3-7 business days

    Description

    The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE supplier adapter or other equivalent product, to deliver 12V or 5V direct current to where there are no power line or outlet, where you wish to fix device such as AP, IP camera or IP phone, and so on.

    Back To Top

    Product Details

    Item # 160618
    OfficeMax # 24025555
    Manufacturer # GD6417
    Compatibility IP Cameras; IP Phones; TP-LINK TL-SF1008P Desktop PoE Switch; TP-LINK TL-WA601G 108M Wireless Access Point; TP-LINK TL-SF1008D 10/100M Desktop Switch
    brand name TP-LINK
    Output Ports 1 10/100Base-TX
    Input Connectors RJ-45
    height 0.9 in
    width 3.2 in
    depth 2 in
    Product Name TL-POE10R Power over Ethernet Splitter
    Input Ports 1 10/100Base-TX
    Maximum Output Voltage 15 V DC
    manufacturer TP-LINK Technologies Co., Ltd
    model name TL-POE10R
    Back To Top

      Customer Reviews

      Back To Top

      From the Manufacturer|Powered by Webcollage

      Thank You Is the information in this section helpful? Yes / No

      Overview

      • What This Product Does

        The PoE Splitter TL-POE10R fully complies with IEEE 802.3af standard, and can work with all IEEE 802.3af PoE compliant PSE (Power Source Equipment) or PoE Supplier Adapter, such as TP-LINK's TL-SF1008P or TL-POE150S, or other equivalent product, to deliver 12V, 9V or 5V Direct Current to where there are no power line or outlet, where you wish to fix device such as AP, IP Camera or IP Phone, etc.

      Features

      • IEEE 802.3af compliant
      • Delivers power up to 100 meters
      • Optional 12V DC 9V DC or 5V DC power supply
      • Plug-and-Play, requires no configuration

      Specifications

      HARDWARE FEATURES
      Interface1 10/100 RJ45 Port
      AUTO Negotiation/AUTO MDI/MDIX
      Network Media
      		10BASE-T: UTP category 3, 4, 5 cable
      (maximum 100m)
      EIA/TIA-568 100Ω STP (maximum 100m)
      100BASE-TX: UTP category 5, 5e cable
      (maximum 100m)
      EIA/TIA-568 100Ω STP (maximum 100m)
      LED Indicator
      		PWR
      Dimensions( W x D x H )
      		3.2*2.0*0.9 in.(81*52*24 mm)
      Power Supply
      		12W (12VDC)
      9W (9VDC)
      10W (5VDC)
      SOFTWARE FEATURES
      Basic Function
      		Compatible With IEEE 802.3af Compliant PSEs
      Delivers Power Up To 100 Meters
      Optional 12vdc Or 5vdc Power Supply
      OTHERS
      CertificationCE, FCC
      EnvironmentOperating Temperature: 0℃~40℃ (32℉~104℉)
      Storage Temperature: -40℃~70℃ (-40℉~158℉)
      Operating Humidity: 10%~90% non-condensing
      Storage Humidity: 5%~90% non-condensing

      Package Content

      •  TL-POE10R PoE Splitter
      • One Ethernet (CAT.5 UTP) Cable
      • One Power Cable
      • User Guide

      Compatibility

      • Work with Windows, Mac and Linux.

      Warranty

      • 2-Year Warranty
